The MAVS (Modular Acoustic Velocity Sensor) Current Meter is a true 3 axis Acoustic Current Meter, which employs a differential travel time measurement technique. The current meter takes measurements across 4 acoustic axes to provide a true vector averaged velocity measurement. Programmable burst mode and triggered sampling provide the most flexible current meter available.
MAVS-3 includes MAVSOFTWin95, Win98, WinNT user interface. Standard, commercially available software such as Hyperterminal or Crosscut may be used to communicate with the MAVS-3for getting real time data or for downloading and archiving recorded data to a PC. Software such as MATLAB, Excel, Quattro Proand Lotus 123 may be used for tabular display and graphing data

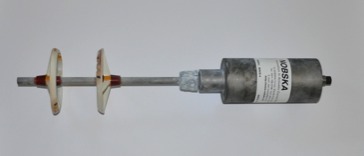

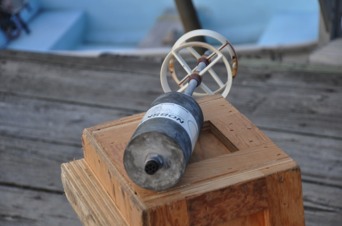

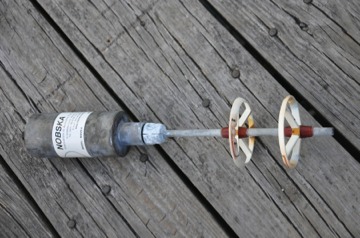

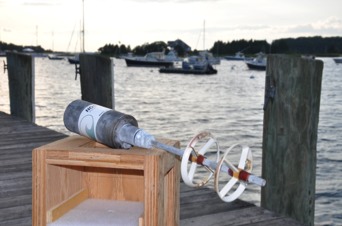

The MAVS-3 employs a faired sensor head design with central strut and a 9.5 cm acoustic path length. The controller is an Onset Tattletale 8 which is mounted by a connector beneath the main circuit board. A battery pack comprising 18 AAalkaline cells provides all the necessary power to the instrument. A4 pin connector mounted on the top end cap permitsexternal power to be applied and provides TTL level, RS-232 or RS-485 communication capability.
MAVS Operating Manual
• Unsurpassed resolution and accuracy
• True 3 axis acoustic velocity measurement
• Field proven sensor technology
• No moving parts to foul
• Multi-mode operation, vector averaging
or event driven sampling
• Excellent vertical cosine response
• Differential travel time measuring
technique
• Internal recording or direct reading
• Accuracy unaffected by instrument tilt
or mooring motion
• Internal real time clock
• Digital communication via 5 Volt TTL,
RS-232 or RS-485
• Temperature measurement
• Direct Reading: RS-232 or RS-485
• Power: 10-15 Volts DC
Speed
Direction
Temperature
Pressure
Tilt
0.3 cm/sec
+/- 2 deg
0.1 deg
0.1% FS
0.04% FS
2 deg
200
360
-5 to 45
User-defined
User-defined
20
0.03 cm/sec
0.1 deg
0.03 deg
0.024% FS
0.024% FS
0.1 deg
Drift: 0.15 cm/sec per month
Measurement Technique: Differential travel time, 3 axis
Acoustic Paths: 4 measured, 4 used
Power:
Internal Recording: 13.5 VDC, 18 AA Alkaline batteries, @ 4.8 Ah,
optional lithium thionyl chloride 14.4 VDC @ 8.8Ah
Direct Reading: External 12-15 VDC
Current Drain: 23 ma. Measuring
0.6 ma. Sleep Mode
Internal Recording Memory: 16, 32, 48, 64, 96, 128, 160, 192, 256, 300, 512 Mbyte compact flash card
Memory Usage: Dependent on sampling method and size of memory installed
Communications: TTL, RS-232 or RS-485 @ 38,400 baud maximum 115.2 K baud
Depth: 2,000 m. or 6,000 m.
Dimensions:
Cylinder Diameter: 3.25 in.
Overall Length: 25 in.
Weight:
Water: 2.6 lbs.
Air: 5 lbs.
Mooring Frame: 2000 lbs. Optional 10,000 lbs. available
Sampling Rates: 10 Hz in Earth Coordinates (resolved to Ve, Vn, Vup) or
15 Hz in instrument coordinates
25 Hz Raw Data, No Compass, No Options
Sea Cable: RS-485 or RS-232 4 wire (inquire for other communication protocols)
Data Record Size:
Standard Instrument: 32 bytes per record for Day, Hour, Min, Sec, T, Tilt, Ve, Vn, Vu
Recorded as Binary and transmitted as ASCII Comma separated variables with CR LF
Operating Modes: Vector Averaging
Burst Mode (programmed for timed sampling)
Externally Triggered Sample
Continuous Sampling
Software: MAVSOFTWindows95, Windows98, Windows XP NTuser interface
Terminal Emulator: Hyperterminal, Crosscut or Tattleterm
Optional Graphical Software available upon request
• MWAVES Software for Plotting Directional Wave Spectra
• MAVSOFT GUI Interface Software for Pre-Deployment Setup, Post-Deployment Data Offload and MAVS Calibration
MWAVES Operating Manual
• Tilt Sensor
• External Temperature Sensor
• Conductivity Sensor
• Pressure Sensor
• Turbidity Sensor
• Deep Water Housing
• Compact Flash logging memory
available from 8 to 300 Mbyte
• Analog Output 4 Channel
