MAVS Deployments
The following example deployments of MAVS provide some context for the variability of function and application along with the contrasting environments and optional usage.
Stacks Image 3179

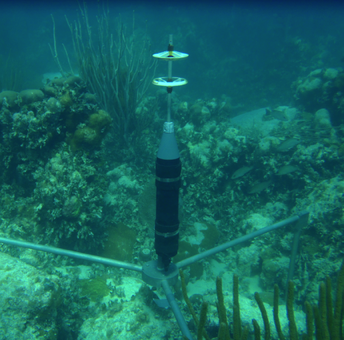

Lander in the Florida Keys:

MAVS on a bottom lander measured temperature and oxygen flux across a coral reef in the Florida Keys to determine rates of respiration and bio productivity by the reef and its response to ocean acidification.
Stacks Image 3181

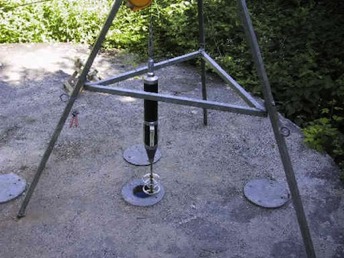

Measuring Convective Currents in Flooded Mine Shaft:

MAVS is lowered through a borehole in a mineshaft concrete cover. The shaft has a diameter of about 6 meters and is 900 meters deep. They measured at some 20 points over the whole water column and first sight at the raw data indicates that the current meter reveals some convection behavior within the shaft that is of interest.
Stacks Image 3183

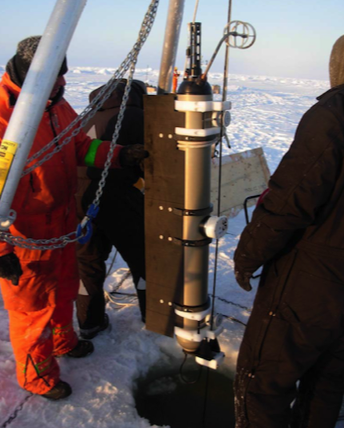

Arctic Ocean Ice Hole:

MAVS sensor on the Ice Tethered Profiler about to deploy for a year, profiling velocity down to 800m and turbulent mixing 5 m below the surface, to better understand heat transport in the Arctic Ocean.
Stacks Image 1026

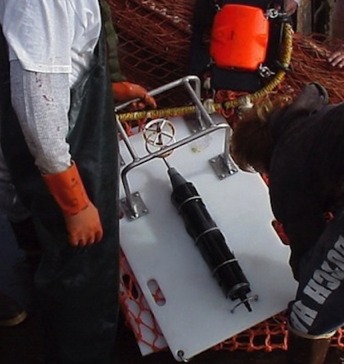

Alaskan Fisheries

The bent sensor MAVS mounted on the head board of this trawl net measures water flow into the net during a tow with 3 D resolution to include vertical components as well as horizontal components of flow into the net.
Stacks Image 3679

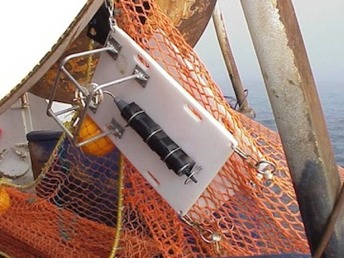

Bearing Sea Survey:

MAVS mounted on the head board of a fishing trawl net measured the volume of water sampled in a NOAA Fisheries survey for setting sustainable fishing limits in the Bering Sea.
Stacks Image 1055

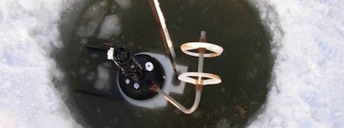

MAVS Ice Tethered Profiler

The MAVS sensor in front of the cable along which the Ice Tethered profiler runs measures flow unobstructed by the housing or the cable.  The ice drill is helicoptered to the deployment site from an ice breaker so the hole diameter is limited requiring a short fin on the Profiler.  Since the short fin cannot suppress swinging and oscillation of the profiler housing MAVS requires precise inertial orientation sensing in the instrument to correct the motion.
